Kırma Eleme Tesisi Dragon 4000

As request taken only one size.

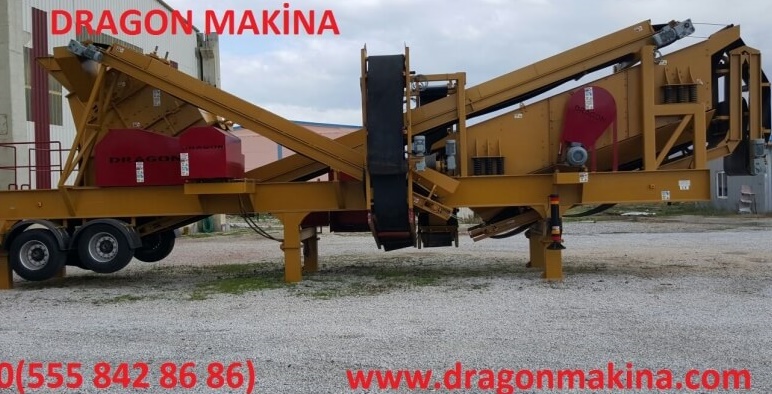

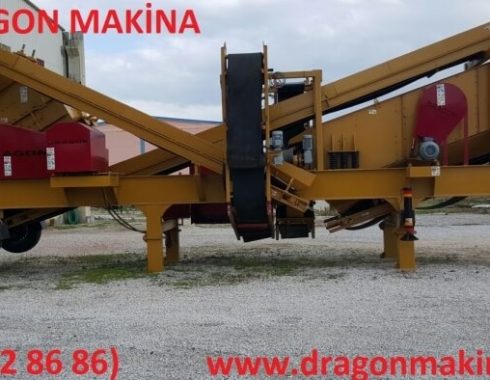

1 – MOBILE SECONDARY CRUSHING AND SCREENING PLANT DRAGON 4000
Capacity : 250 – 375 t/h
HDK SERIES 12.13 ( IMPACT CRUSHER SYSTEM )
Type HDK 12.13 S
Rotor Size Ø 1200 x 1350 mm.
Rotors Impulse observer
Max.Feed Size 350 mm
Palette of rotor -18 Mn&Cr alloyed steel casting
Palette of adjustmen rod -18 Mn&Cr alloyed steel casting
Side armours Hardox 500
Rotors armours Hardox 500
Power 200 – 250 kW 1500 rpm
Power transmission Power transmission by V belt and pulleyss
Main Conveyor Belt
1000 mm
VIBRATING SCREEN High Capacity Type
Type TE2050x3
Dimension 2000 x 5000 mm
Number of decks 3
Working angle 18°
Screen Power 22 kW
Welded steel construction frame, mounted on heavy duty helical springs, circular motion generation
by eccentric-weights, no blinding of screen openings, rapid tensioning of screen cloth, adjustment
of vibration amplitude, self aligning tapered roller bearings, effective sealing, grease lubrication.

Screen Stock Conveyor Belt
1 unit 1000 mm
Stock Conveyor Belt
2 unit 600 mm
Feedback Conveyor Belt
2 unit 600 mm
Mobile Chassis : 2 axle chassis
Control Board : Siemens Brand Electrical Equipment
* Remote Control for One-Man-Operation.
* Hydraulic System
Standard Equipment
Dust Control System – Dust Reduction
Optionals
Generator ( Cummins ,Perkins , Cat , Doosan ) Engine power 400 kva generator (Optional)
Magnet Conveyor Belt ( Optional )
Mobile Secondary Crushing and Screening Plant Dragon 4000
Maximum feeding size : 350mm
Ideal feeding size: 0 – 250 mm
Final size : 0 – 20 mm (0-5 mm , 5-12 mm ,12-20 mm or requested three types material and plus by-pass output production )
